MCS 3 Way Remote Coilover Kit (3W) – E36 / M3
-
Drop in a MCS 3 Way Remote (3W) coilover kit on your E36 including the M3. This coilover kit is offered in street/track/race Spring Packages and ship pre-assembled by RaceWerkz Engineering. Includes Vorshlag camber plates, Swift Main/Helper Springs and SPL sway bar endlinks.

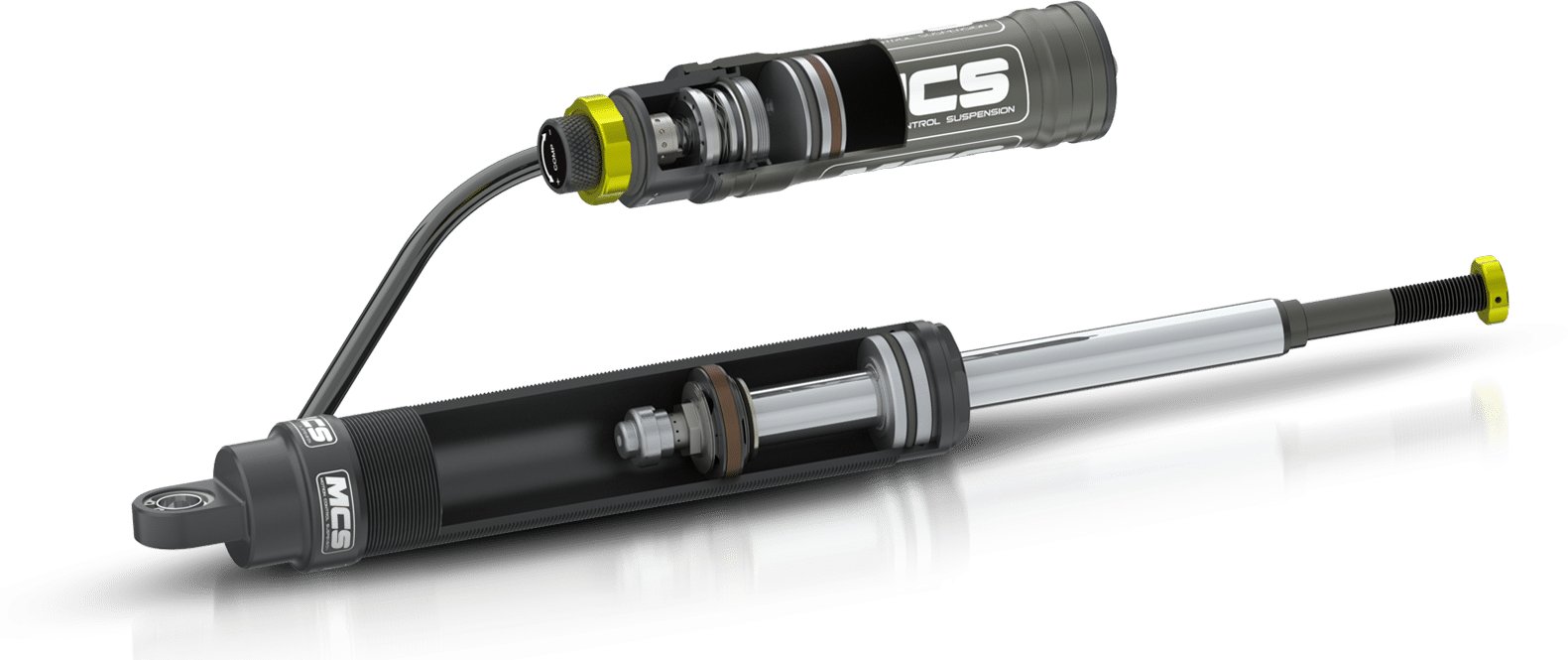

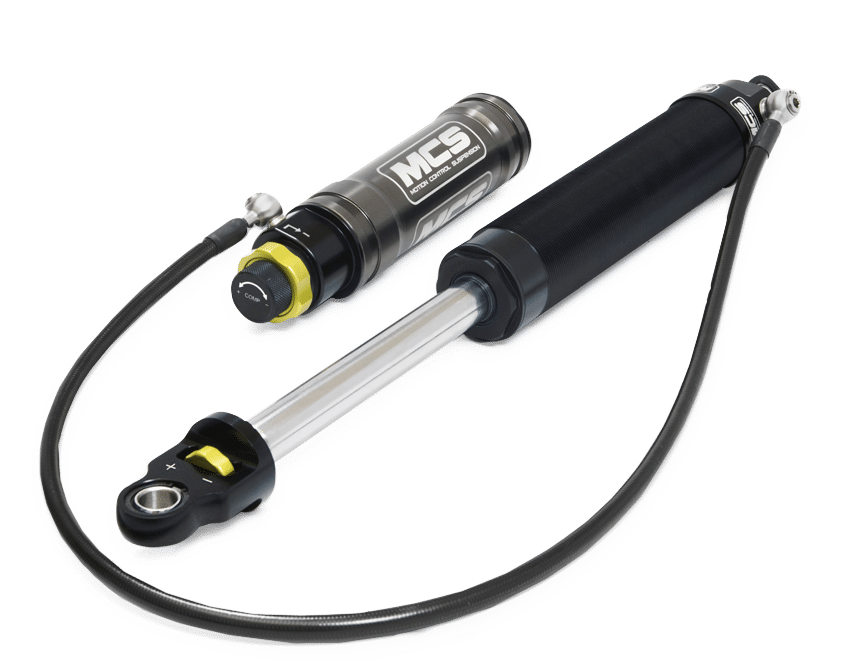

E36 M3 MCS 3 Way Remote Damper (3W)
SPRING PACKAGE
Street / Track
F: 616 LB
R: 448 LB
Track / Race
F: 672 LB
R: 504 LB
Dampers + Springs + Camber Plates + Endlinks
All kits are assembled with fasteners torqued and paint marked with baseline settings applied
Vorshlag Camber Plates
Get up to -4 camber with spherical bearings for better durability and wear characteristics

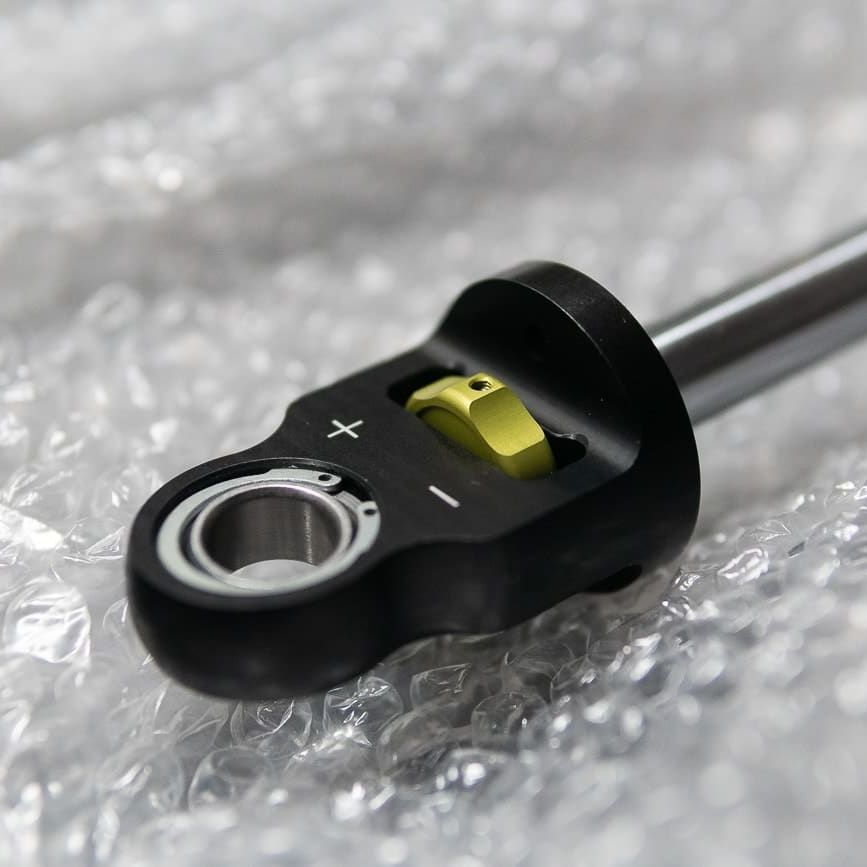

MCS Rear Clevis Mount
True-rear coilover configuration which does not require rear weight jackers
Customizable Swift Springs
Swift main and helper springs
SPL Adjustable Endlinks
Teflon lined FK 1/2" bearings to provide the highest load capacity
High/Low Speed Compression Adjustment
18 clicks high speed, 10 clicks low speed
Easy Rebound Adjustment
More spring control with 18 clicks of rebound adjustment
Kit Contents
- (2) MCS Triple Adjustable Strut w/ External Reservoir (Front)
- (2) MCS Triple Adjustable Shock w/ External Reservoir (Rear)
- (2) MCS Upper Clevis Mount (Rear)
- (2) MCS Spring Perch Locking Tool
- (2) Vorshlag Camber Plate
- (4) Swift Main Spring
- (4) Swift Helper Spring
- (2) SPL Endlink
Additional information
| Spring Package | Street / Track (616 F / 448 R), Track / Race (672 F / 504 R), Custom |
|---|---|
| Brand | Motion Control Suspension |
| Chassis | E36 |
| Product Category | Suspension |
Be the first to review “MCS 3 Way Remote Coilover Kit (3W) – E36 / M3”
| Series | Chassis | Model |
|---|---|---|
| Series | Chassis | Model |
| 3 Series | E36 (92-99) | 323ic |
| 3 Series | E36 (92-99) | 323is |
| 3 Series | E36 (92-99) | 325i |
| 3 Series | E36 (92-99) | 325ic |
| 3 Series | E36 (92-99) | 325is |
| 3 Series | E36 (92-99) | 328i |
| 3 Series | E36 (92-99) | 328ic |
| 3 Series | E36 (92-99) | 328is |
| 3 Series | E36 (92-99) | M3 (1995) |
| 3 Series | E36 (92-99) | M3 (96-99) |
